easyTERLOC A057

easyTERLOC A057

Type

Category

Title

Size

Version

Current Status

pdf leaflet Leaflet easyTERLOC 1.33 Mb 01.09.2011

Type

Filetype

Description

Size

Version
There are no FAQs available for the selected product.

Function:

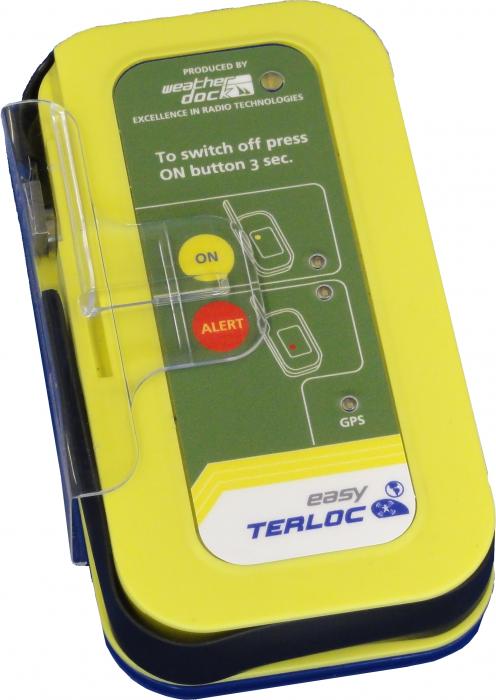

The easyTERLOC is a portable transmitter with an integrated GPS module. The position of the device as well as the object-related data programmed into the device will be transmitted on a special VHF channel. The incoming data can be displayed on a terminal or PC screen with a customized receiver.

Each worker or vehicle driver can transmit his current position continously to the Center Station by pressing the ON button once. In the case of an accident an emergency signal including the GPS position is sent by pressing ALERT.

What is necessary to use the easyTERLOC?

The easyTERLOC can be carried in the pocket of the work clothes. Vehicle drivers fix it in the cockpit. The charging station provides intelligent and ideal charging, which ensures the long lifespan of the batteries. The object-related data is programmed into the device by the customer administrator or the manufacturer.

The Center Station needs a customized receiver as well as a suitable terminal (like a customary car navigation system) or PC software to display the incoming data.
Features:

  • Portable VHF position transmitter
  • Rechargeable NiMH batteries
  • Battery lifespan: minimum 48 h with full battery power
  • Transmission range of approx. 10 km (depending on the height of the receiving antenna)
  • Made in Germany

Additional equipment:

  • charging station in different variants a) charging station b) programming station and c) combination charging/programming available (quantity and type depends on the customer requirement. Other charging stations cannot be used!)
  • portable easyTERLOC INFO BOX with a customized receiver and a terminal device
  • customized receiver to connect it to customary display devices
  • PC software to display the data
Technical Data:

  • Transmission power:
    short antenna    <= 1 W (usually for people)
    long antenna    >= 2 W (usually for objects)
  • Specifiable frequency range from 155.5 MHz to 162.25 MHz, 25 kHz channel spacing (Please ask your local authority for costumer frequencies.)
  • Operating temperature range:    -10 °C to +55 °C
  • Storage temperature range:        -30 °C to +60 °C
  • Dimensions (L x W x H):              130 x 70 x 30 mm
  • Weight:                                            250 g
  • Independent of any GSM network
  • Usage free of charge
  • Transmission range of approx. 10km
  • Ideal for
    - Mining Companies
    - City Vehicle Tracking
