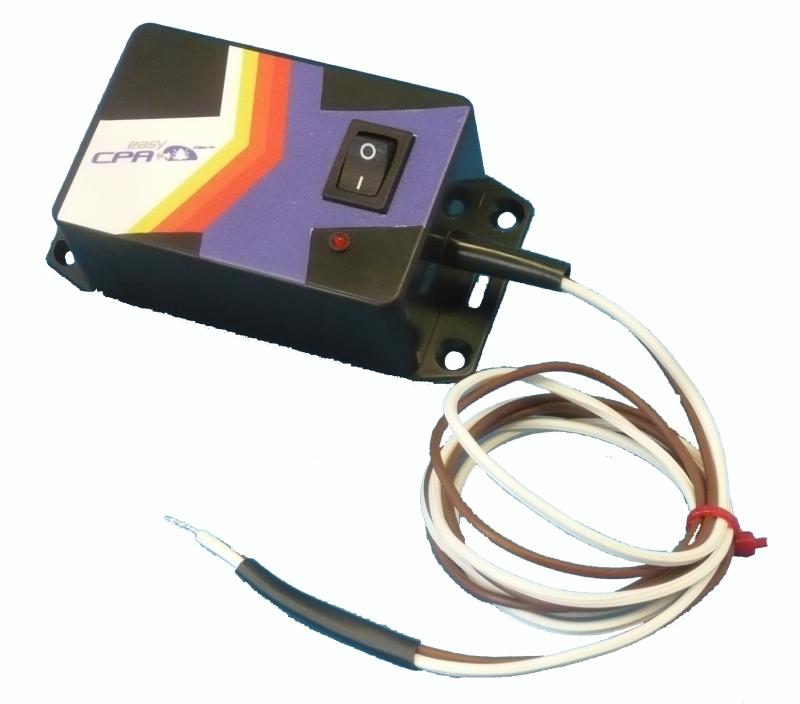

The CPA-alarm is an external signal generator for the CPA (Closest Point of Approach)-function and for the acoustic notification of an incoming AIS S.A.R.T emergency telegram.

Functionality
The easyCPA-alarm is designed as an additional equipment to the AIS send/receivers easyTRX2 and easyTRX2-IS and it improves the safety on board.
Together with this external acoustic signal generator it is ensured that previously defined potential dangers are recognised through the CPA-function of the receiver and hence are signalled clearly.
AIS emergency telegrams that were sent are also recognised by activated AIS S.A.R.T and are signalised as well. Thus a temporarily delayed perception through sleep or terminal devices which are turned off is prevented.

The device receives impulses by the easyTRX2 and by the easyTRX2-IS, respectively as soon as the set CPA-function was triggered and turns them into acoustic signals. The easyCPA-alarm has two different signal tones, so that CPA-warnings and AIS S.A.R.T. can be differentiated.

What is necessary to operate an easyCPA-alarm?
It is required to have an easyTRX2 or an easyTRX2-IS in operation. Only with these two devices is it possible to set the incoming AIS signals in relation to the settings of the CPA-function and to initiate respective actions.
  • Dimensions
    Bottom plate: length 81 mm, width 31 mm
    Box: height 27 mm
  • acoustic pressure of the signal generator: 105 decibel
  • frequency: 2.9 kHz continuous tone
  • operating temperature range: -20°C - +60°C
  • operating voltage is analogous to the connected easyTRX2 or easy TRX2-IS
