easyTRX2-IS A050
Type |
Category |
Title |
Size |
Version |
Current Status |
 |
leaflet | Leaflet GER/ENG | 1.42 Mb | 12/04 | 13.04.2012 |
|
manual hardware | easyTRX2 & TRX2-IS manual French | 0.99 Mb | 07.03.2011 | |
|
manual hardware | Manual Hardware TRX2/TRX2-IS | 1.02 Mb | 2.2 | 07.03.2011 |
|
Presentations | Schematics easyTRX2-IS | 0.2 Mb | 1.0 | 07.02.2011 |
Type |
Filetype |
Description |
Size |
Version |
 |
>>Note<< | Hinweis: Um ein Update auf die neueste Firmware vorzunehmen, kontaktieren Sie Ihr Gerät mit Hilfe des USB-Kabels. Sollten Sie ein Gerät mit WiFi-Funktion besitzen, so ist ein Update über die Funkstrecke nicht möglich! Die neueste Software/Firmware finden Sie hier: http://easyais.de/produktseite.php?prodid=39#fragment-5 ------------------------------------------------------------ Note: To make an Firmware-Update please connect your device through USB to your PC. If you have a device with WiFi-Function it is not possible to do a update over the air! You´ll find the latest firmware here: |
0 Mb | 1.0 |
- Operation

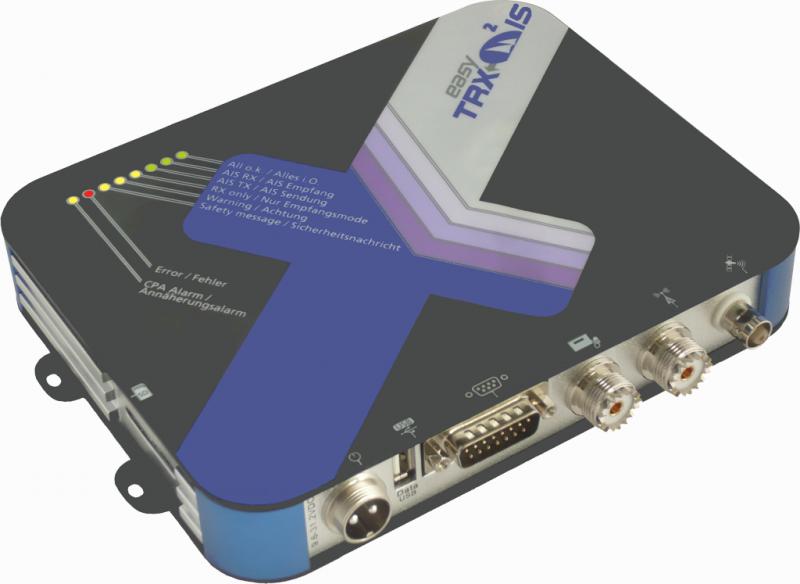

Like ist predecessor the easyTRX2-IS receives ClassA and ClassB signals and transmits your own boat’s data in accordance with valid standards.
We added some new features, indeed:
The gadget comes with a USB-port now. You can select between 38400 or 4800 Baud data rate. There are 8 LED’s for a convenient display of every active feature. The easyTRX2-IS has got an independant CPA alarm algorithm to interpret incoming data immediately. TRX2-IS can also be used as a source for external CPA alarm signal as well. The easyTRX2-IS has got a SD Card Recorder to enregister all data like it’s done by a “BlackBox”. Further units wth different Baud rate can be connected by means of an integrated multiplex input. Last but not least there are various separated cables harness to activate “Silent Mode” or “Mayday AIS” by an external switch.
In contrast to easyTRX2 the easyTRX2-IS is provided with an integrated antenna-spliter. By means of this splitter with integrated RF-signal amplifier, physical losses are eliminated, which is unique in nowadays market. The use of the integrated splitter makes the instalation of the unit to the existing VHF antenna very easy.
Requirements for the easyTRX2-IS
You only need yoour existing VHF antenna and a GPS antenna.
EasyTRX2-IS and gadgets that fit together
Your PC must work on WIN XP Sp2 and have screen resolution 1024*768 at least for configuration. Plotter or PC software have to be intermate-able to AIS to display incoming AIS data on screen. A MMSI number is required to broadcast data - you will get it from national authorities. Your distributor will program your easyTRX2-IS for that MMSI number.
- AIS Class B transceiver with integrated active antenna splitter
- 1 transmitter, 2 receivers
- Sensitivity: min -107 dBm, typically -112dBm
- VHF antenna connector, SO239, 50 Ohm
- VHF radio connector, SO239, 50 Ohm (IN/OUT)
- GPS antenna connector, BNC, 50 Ohm
- NMEA telegram: VDM
- Data rate: 38400 oder 4800 baud, bi-directional
- Wide power input 10 V to 32 V DC, -25°C to 60°C
- Under deck mounting
- 198 mm (L) x 161 mm (W) x 31 mm (H)
- Weight app. 375 g
- AIS ClassB Tranceiver
- certified by BSH: BSH / 46162 / 4320939 / 10
- Simple installation and application
- Simple PC-software for configuration included
- Integrated Splitter
- Separate cables for “silent” or “mayday-AIS” for persistent signal
- Additional USB-Port
- 38400 or 4800 Baut rate. Select with software
- Operating display with 8 LEDs
- CPA-Alarm even without plotter connected
- Can be used as power source for external CPA signal
- easyCPA A052 / easyCPA³ A056 misc. Equipment
- Enlarged voltage input 10-32V DC
- SD Card Recorder for Blackbox employment
- Multiplexer integrated
- AIS-S.A.R.T. Alarm even with disconnected plotter
