Combination Antenna A028

Combination Antenna A028

Type

Category

Title

Size

Version

Current Status

pdf leaflet Combination Antenna leaflet 1.44 Mb 2.0 28.05.2009
pdf Presentations Antenna installation guide 0.28 Mb 1 29.11.2013
pdf specification Combination Antenna specification 0.16 Mb 1.0 16.03.2009

Type

Filetype

Description

Size

Version

Functionality:

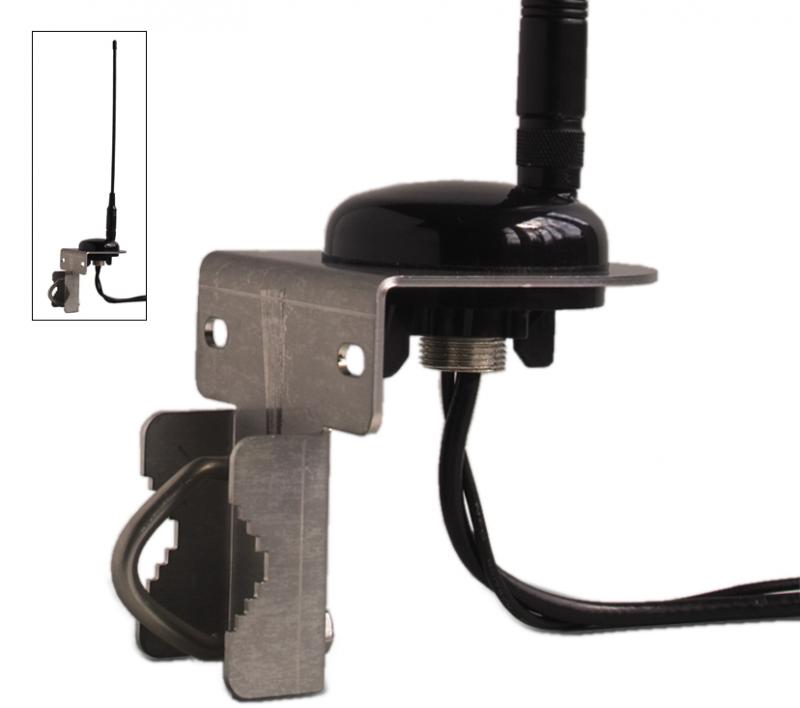

The combination antenna of the company Weatherdock for GPS data receiption and VHF transmission and VHF receiption can be used with the easyTRX or other Class B AIS transceivers

What is necessary to connect the VHF/GPS combination antenna
There is no special device or adapter necessary. The antenna is supplied with two 6m long cables. One for the VHF and one for the GPS. The right plugs are assembled to the cables to connect it to the easyTRX. The cables can be extended by a cable extension up to 15m. But, please if you extend the cables, please use good cables extension, eg. Aircell 7 or similar and not the regular RG58.

For which Class B AIS transceiver the VHF/GPS combination antennas can be used?
The VHF/GPS combination antenna can be used for every Class B AIS transceiver which needs GPS raw data and an antenna to transmit the VHF AIS data. (Most of all Class B AIS trasnceivers do need raw data GPS antennas!)

GPS

  • Frequency GPS: 1575,42MHz for GPS receiption
  • Amplification GPS tipically 27dB
  • Amplification GPS app. 27dB
  • Noise GPS; 2dB max
  • Voltage:GPS 5VDC +/-10%
  • Power consumtion GPS : <30mA
  • VSWR GPS : 2.1 max
  • Plug GPS: TNC
VHF
  • Frequency from: 156 . to 162MHz
  • VSWR 1,5:1 max
  • Amplification: 0dBi
  • Impedance: 50 Ohm
  • Maximale transmission power: 30W
  • Lenght app 35cm
  • GPS antenna
  • GPS antenna supplies raw data, no NMEA data
  • VHF Antenna, capable to transmit power up to 30W
  • Power supply for the GPS through the cable by means of the easyTRX
  • Incl. Stainless steel holder
  • Article number A028
