easySPLIT OCB A027

easySPLIT OCB A027

Type

Category

Title

Size

Version

Current Status

pdf leaflet SPLIT OCB leaflet 3.32 Mb 2.0 28.05.2009
pdf leaflet SPLIT OCB leaflet 0.42 Mb 1.0 16.03.2009
pdf manual hardware SPLIT OCB manual 1 Mb 1.3.0 16.03.2009
pdf specification SPLIT OCB specification 0.23 Mb 1.0 16.03.2009

Type

Filetype

Description

Size

Version

Functionality::

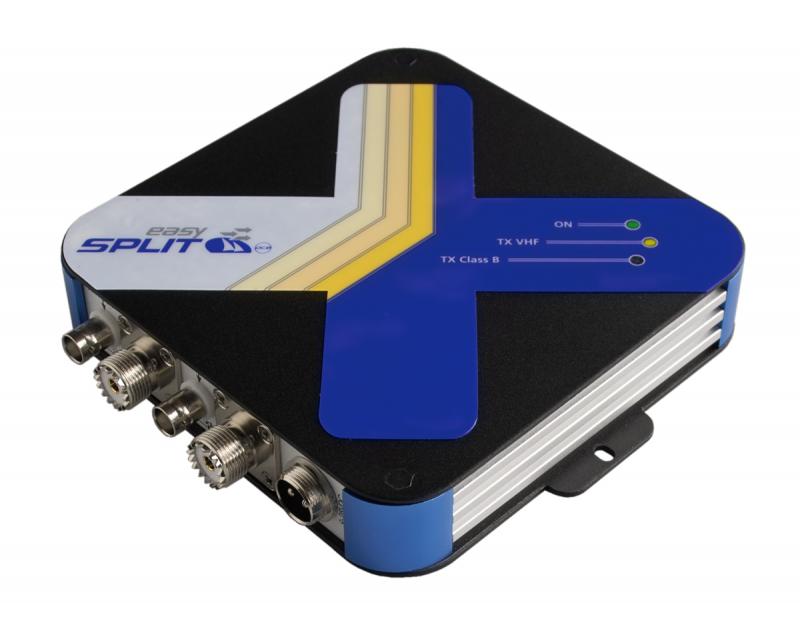

The easySPLIT OCB (OCB stand for "operates Class B) is checking whether there is a transmission power from the VHF radio or the Class B AIS receiver to the Antenna. If this is the case the easySPLIT disconnects very fast the other connected units, as there are the AIS receiver and the car radio. If all the units are in reception mode, the units are all connected to the same antenna.

A very fast disconnection is necessary, because the Class B AIS Transceiver do transmit their signal with 2 W power in a very short time. Therefore the used splitter, the easySPLIT OCB must disconnect the other units even faster than the Class B AIS transceiver is giving out ist message. The easySPLIT OCB is disconnecting the other units in faster than 1ms!

What else do I need to use the easySPLIT OCB?
As the easySPLIT OCB is a splitter, you need nothing else the your already existing units (e.g. VHF antenna) and of course a power supply.

What fits to the easySPLIT OCB?:
All existing VHF Radios, all existing AIS Class B transceiver and all existing FM radios can be connected to the easySPLIT. Nevertheless the optimum of performance is achieved if you use other units from the Weatherdock AG company, because these units are designed to work together in a perfect way.

  • Frequency selective power divider with 2 Transmit/Receive port (VHF Radio and Class B AIS ) and 1 receiver port
  • VHF Radio (IN/OUT): 50Ohm, SO239
  • AIS Transceiver: 50Ohm, BNC
  • FM Radio: 50 Ohm, BNC
  • VHF Antenna: 50Ohm, SO 239
  • Power: 9v-28VDC, @<120mA (Average of different modes)
  • Ambient conditions: under deck, 0°C to 60°C
  • 140mm (l) x 140mm (w) x 35mm (h)
  • Weight: app. 400gr
  • Active VHF Splitter to connect through the standard VHF antenna:
    zum Anschluß von
    • VHF Radio
    • AIS transceiver Class B (Recommended
      for use with easyTRX)or AIS receiver
    • FM car radio
  • Enlarged DC power input
  • Article number A027
