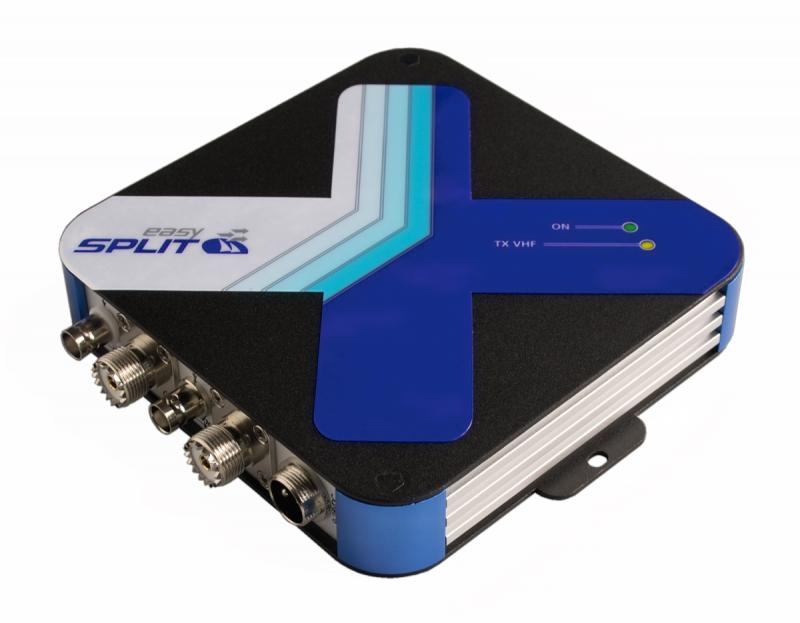

easySPLIT A026

easySPLIT A026

Type

Category

Title

Size

Version

Current Status

pdf leaflet SPLIT leaflet 3.15 Mb 2.0 28.05.2009
pdf manual hardware easySplit 2Gen - Manual 0.36 Mb 2.0 14.02.2011
pdf specification SPLIT specification 0.17 Mb 1.0 16.03.2009
pdf technical data SPLIT technical da 1.gen 0.1 Mb 1.0 21.04.2010

Type

Filetype

Description

Size

Version

Functionality:
The easySPLIT is checking whether there is a transmission power from the VHF radio to the Antenna. If this is the case the easySPLIT disconnects very fast the other connected units, as there are the AIS receiver and the car radio.
If all the units are in reception mode, the units are all connected to the same antenna.

What is necessary to use the easySPLIT
As the easySPIT is a splitter, you do nothing else need than your (already) existing VHF antenna and of course a power supply.

What fits to the easySPLIT?:
" All existing VHF Radios, all existing AIS receivers and all existing FM radios can be connected to the easySPLIT. Nevertheless the optimum performance is achieved if you use other units from the Weatherdock AG company, because these units are designed to work together in a perfect way.

  • Frequency selective power divider with 1 Transmitt/Receive port (VHF Radio) and 2 receiver ports
  • VHF Antenna: 50Ohm, SO 239
  • VHF Radio (IN/OUT): 50Ohm, SO239
  • AIS Receiver: 50Ohm, BNC
  • FM Radio: 50 Ohm, Chinch
  • Power: 9v-28VDC, @<120mA average over the different modes of operation
  • Ambient conditions: under deck, 0°C to 60°C
  • 140mm (l) x 140mm (w) x 35mm (h)
  • Weight: app. 450 gr
  • Active VHF Splitter to connect through the standard VHF antenna:
    • VHF Radio
    • AIS receiver (Recommended for use with easyAIS)
    • FM car radio
  • Enlarged DC power input
  • Article number A026
