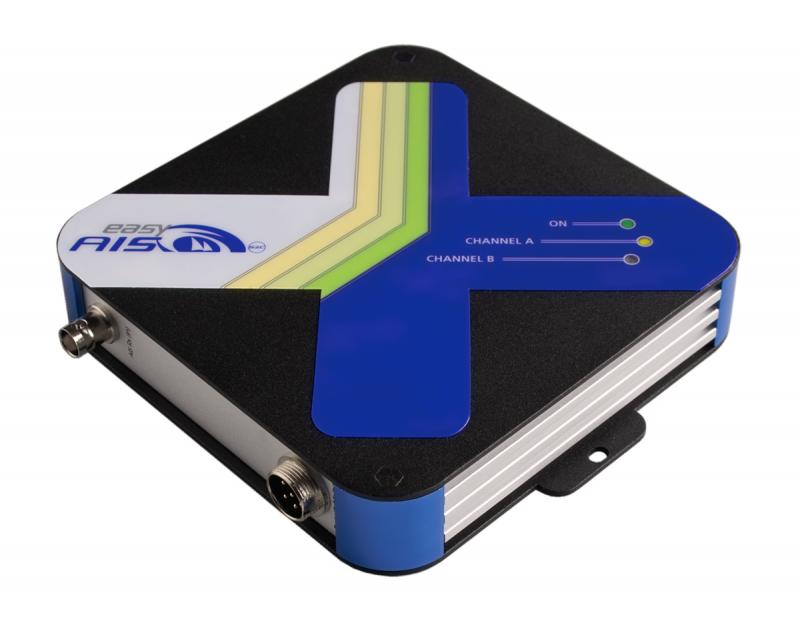

easyAIS A025

easyAIS A025

Type

Category

Title

Size

Version

Current Status

pdf leaflet easyAIS 2. Gen Leaflet 3.26 Mb 2.0 28.05.2009
pdf manual hardware easyAIS 1. Gen Manual 1.44 Mb 1.0 02.06.2009
pdf manual hardware easyAIS 2. Gen Manual 0.8 Mb 1.3.0 16.03.2009
pdf specification easyAIS 1. Gen Connector 0.53 Mb 1.0 02.06.2009
pdf specification AIS specification 0.17 Mb 1.0 16.03.2009

Type

Filetype

Description

Size

Version
executable Baud Check Software to check the programmed baudrate of the easyAIS (38400 dafault, 4800 option) 0.76 Mb 1.0

Functionality:
The easyAIS receives the AIS VHF radio signals, most sent by commercial vessels (but also from an increasing figure of pleasure boaters). These signals then proceed into a NMEA Signal which can be interpreted from the latest chart plotter or PC software.

What is necessary to use the easyAIS 2nd Generation?
" You need to have your own VHF antenna. As an alternative you can use the easySPLIT, with which you can connect the existing VHF antenna for the reception of the AIS.

Which Chart plotter/PC software fits together with the easyAIS?:
" Most of the new chart plotters or PC software are capable to display AIS data on the screen. Nevertheless please check with your distributor whether your chart plotter/PC software is capable and can manage and display incoming NMEA data.

  • 2 channel receiver to receive AIS data on 161,975MHz and 162,025 MHz
  • Sensitivity: -112dBm (Therefore -3dBm better than the norm for class A receivers!!)
  • Channel spacing: 25kHz
  • Enlarged power input: 9VDC-28VDC, 80mA
  • Anschluss: 9V - 28 VDC, 80 mA
  • Antenna connector: BNC socket. 50 Ohm
  • Baud rate: 38,4kB (optional 4,8kB by means of a jumper setting)
  • NMEA output message: VDM
  • Ambient conditions: under deck, 0°C to 60°C
  • 140mm (l) x 140mm (w) x 35mm (h)
  • Weight: app. 400 gr
  • Integrated multiplexer up converting from 4,8kB to 38,4kB
  • 2 channel AIS receiver with newest micro processor (µP) technology
  • Highest sensitivity at optimized selectivity
  • Integrated multiplexer up converting from 4,8kB to 38,4kB
  • Enlarged DC Power Input
  • Article number A025
